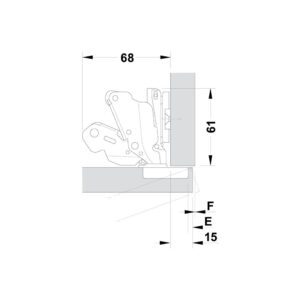

Hafele Metalla 510 Wide Angle Concealed Hinge

Tk. 1,750

Key Features :

  • Required drilling depth for hinge cup only 8 mm.
  • 0-door offset for use with internal pull outs or extending trays.
  • With integrated soft closing mechanism in hinge cup.

Hafele Metalla 510 Wide Angle Concealed Hinge Features :

Product Name Metalla 510 Wide Angle Concealed Hinge EN 15570
Code 311.46.594
Brand Hafele
Product Type Hinge
Colour/Finish Nickel plated
Material Zinc alloy: cup, steel: hinge arm
Model EN 15570
Area of Application For wooden doors
Hinge Type Full overlay
Cup Fixing For screw fixing
Drilling Depth Hinge cup with soft closing mechanism:13.5 mm
Adjustment Facility Side adjustment –1.5 to +4.5 mm,
Height adjustment -2 to +2 mm,
Depth adjustment with mounting plate +2.8 mm
Opening Angle 155°
Door Thickness 16-28 mm
Installation Door to cabinet for quick fixing with SM quick fixing system
Supplied With Hinge, Mounting plate
