Hafele Metalla 510 Concealed Hinge

Tk. 550

Key Features :

  • With integrated soft closing mechanism in hinge cup.
  • The soft closing mechanism can be activated at an opening angle of 30°or 10° via damper shifter.
  • Salt Spray Test: 48 Hours (Passed).
  • Cycle Test: 200,000 Cycle (Passed).

Hafele Metalla 510 Concealed Hinge Features :

Product Name Metalla 510 Concealed Hinge EN 15570
Code 311.46.592
Brand Hafele
Product Type Hinge
Colour/Finish Nickel plated
Material Steel
Model EN 15570
Area of Application For wooden doors

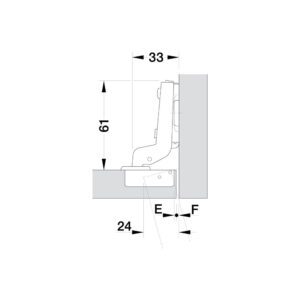

Hinge Type Inset mounting
Edge Distance 37 mm
Drilling Pattern 48/6
Adjustment Facility Height adjustment ±2 mm via slot
Opening Angle 105°
Door Thickness 15-24 mm
Installation Door to cabinet for quick fixing with SM quick fixing system
Supplied With Hinge, Mounting plate
