Hafele Folding Sliding System

SKU: 943.03.000 Categories: ,

Tk. 17,500

Key Features :

  • Good quality system for timber folding door panels
  • Simple to install
  • Up to four each side
  • Low headroom system offers the option to mount the track in the ceiling to cover the full opening
  • 1000 mm panels can be installed without a bottom channel on 2 doors only folding to one side

Hafele Folding Sliding System Features :

Product name Fold 84 EF (Wood)
Code 943.03.000
Brand Hafele
Product type Sliding Fittings
Material/finish Steel, Galvanized
Area of application Interior doors
Door Height Max. 2400mm
Door Width Max. 1000mm
Door Thickness 35-50mm
Door Weight Max.80kg (Per Door 40kg)
Length 3000mm

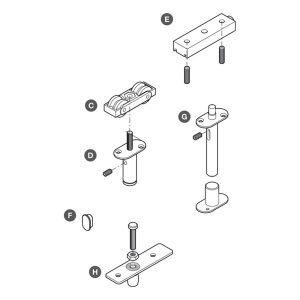

Supplied with Set for 1 pair of panels consists of 1 x trolley hanger, galvanized steel, 1 x Fixing plate, galvanized steel, 1 x track stopper, galvanized steel, 2 x end caps, for access to adjustment on fixing plate and top pivot, galvanized steel, 1 x Top pivot, galvanized steel, 1 x bottom pivot, galvanized steel
Set for additional pair of panels consists of 1 x trolley hanger, galvanized steel, 1 x fixing plate, galvanized steel
Set for swing door consists of 1 x track stopper, galvanized steel, 2 x end caps, for access to adjustment on fixing plate and top pivot, galvanized steel, 1 x Top pivot, galvanized steel, 1 x Bottom pivot, galvanized steel
Others Can be installed with Ball Bearing or Concealed Hinge
Tracks and fittings to be ordered separately
