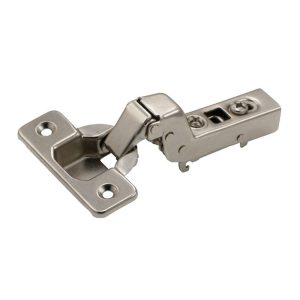

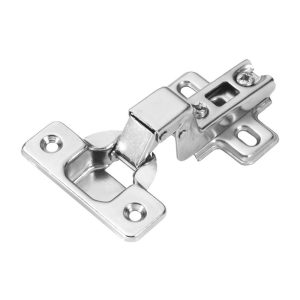

Hafele Concealed Hinge

Tk. 290

Key Features :

  • Soft Close integrated into hinge arm.
  • Clip-on Mounting.
  • Material certified according to TUV Germany.
  • 3 Dimensional adjustment facility.
Brand:Hafele

Hafele Concealed Hinge Specifications:

Product name Concealed Hinge
Code 315.07.022 Or 315.07.077 (PSL)
Category Hinge
Concealed hinge version Inset
Opening angle 110 °
Suitable for Wardrobes and Cabinet
Material Steel
Installation Screw Fixing
Adjustment facility Side adjustment facility: 0 – 3 mm, Height adjustment facility: ±3 mm, Depth adjustment facility: -1 – 4 mm
For wooden door thickness 14 – 24 mm
Cup drilling depth 12.5 mm
Supplied with 2 Hinges+2 Mounting Plates+ 8 fixing screws
Additional information attributes Not suitable for under-sink application
Finish Nickle Plated
Salt Spray Test 48 Hours (Passed)
Cycle Test 40,000 Cycle (Passed)

Brand

Hafele
