Hafele Ball Bearing Hinge

SKU: 926.13.003 or 926.32.160 Categories: , ,

Tk. 880

Key Features :

  • Screws provided with Hinge
  • Material:SS 304
  • Size : 4′ x 3″ x3mm

Hafele Ball Bearing Hinge Features :

Product name Ball Bearing Hinge
Code 926.13.003 or 926.32.160
Brand Hafele
Locking system Standard locking
Material Stainless Steel (304)
Colour/finish
Stainless steel coloured, Matt, Electroplated
Mounting DIN left/right

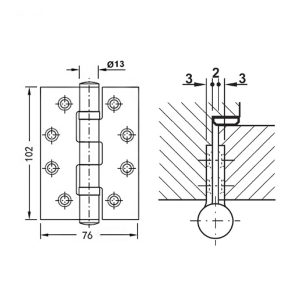

Flange shape Square
Flange width 102 mm
Knuckle diameter 14 mm
Flange thickness 3 mm
Flange height 102 mm
Max. door weight for 2 hinges 80 kg
Door thickness ≤60 mm
For drill hole Ø 6,3 mm
Bearing type Ball bearing
Supplied with Fixing screws
