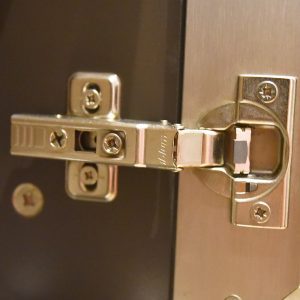

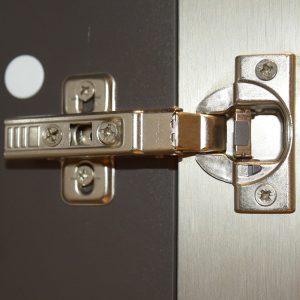

Blum Wide Angle Soft Close Hinge
Tk. 1,518
Key Features :
- Mounting plate with steel, for screw fixing with chipboard screws, Clip Top Blumotion concealed hinges, for Aventos HF, HF Servodrive, HK-S and HK-S Tip-On front fixing brackets, distance D: 0 mm.
- Concealed hinge, Clip Top 155º, full overlay mounting, for cabinets with internal drawer boxes with railing or pull-out shelves.
- Protruding thin materials, doubled thin materials, maximum door thicknesses, maximum door overlay, cup fixing: For screw fixing, model: 71T7500N, drilling pattern: 45/9.5 mm.
- Soft closing mechanism for doors, Blum Blumotion, For cabinets with internal pull out or extending trays, for special applications for attaching to hinge arm.
Brand:BLUM
Blum Clip Top 155° Wide Angle Hinge Features:
| Product name | CLIP TOP 155° WIDE ANGLE HINGE |
| Code | 342.22.060 |
| Category | Mounting plate |
| Height | 8.5 mm |
| Material | Steel |
| Model | 175H3100 |
| Color/finish | Nickel-plated |
| Adjustment facility | Side adjustment: When used as front fixing bracket ±2 mm, Height adjustment: Via eccentric ±2 mm |
| Installation | for screw fixing with chipboard screws |
| Code | 342.44.500 |
| Category | Hinge |
| Model series | Clip Top |
| Concealed hinge version | full overlay |
| Crank type | High Cranked |
| Material | Zinc alloy, Hinge arm: Steel |
| Door processing for assembly | cup drilling |
| Adjustment facility | Side adjustment facility: ±2 mm, Height adjustment facility: ±3 mm, Depth adjustment facility: -2 – 3 mm |
| Cup drilling depth | 11.7 mm |
| Code | 342.45.000 |
| Category | Clip-on |
| Area of application | For cabinets with internal extensions or pull-out shelves |
| Suitable for | Blum Clip Top 125° Blum Clip Top 155° |
| Material | Zinc Alloy |
| Others | Filigree Blumotion soft-close for plug fitting |
| Can be used for door thicknesses up to 27 mm in combination with an opening angle restraint of 110° | |
| Mitred mounting possible |
