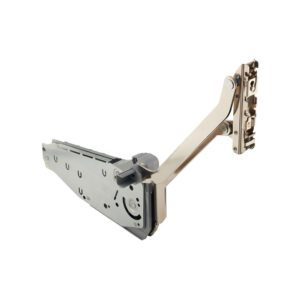

Hafele Free Up Mechanism  Lift up system

Tk. 23,900

Key Features :

  • Minimum opening resistance.
  • Flap locks in any position (multi-position stop).
  • Smooth, soft closing movement.

Hafele Free Up Mechanism  Lift up system Features :

Product Name Free Up Mechanism
Code 372.38.132, 372.38.137 & 372.38.138
Brand Hafele
Product Type Lift up system
Model P1us pto
Cover Color White
Fitting Material Steel
Cover Cap Material Plastic
Cross Bar Material Aluminium
Area of Application Kitchen, Bedroom top cabinets
Height Range 430-600 mm
Maximum Cabinet Width 1800 mm
Weight Bearing Capacity 5 – 9.7 kg
Cross Bar Length 1074 mm
Adjustment Facility Height
Installation For screw fixing
Supplied With Left and right mechanism, Front fixing bracket, Sleeves for stabilization rod.
