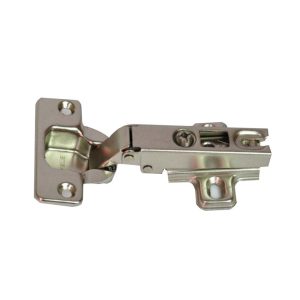

Hafele Concealed Hinge

Tk. 290

Key Features :

  • Opening Angle 110º.
  • With 3 dimensional adjustment.
  • Slide-on hinges for standard application.
  • Clip on mounting.

Hafele Concealed Hinge Features :

Product name Concealed Hinge
Code 311.90.500
Category Hinge
Concealed hinge version Full overlay
Opening angle 110 °
Suitable for Wardrobes and Cabinet
Material Steel
Installation Screw Fixing
Adjustment facility Side adjustment facility: 0 – 3 mm, Height adjustment facility: ±3 mm, Depth adjustment facility: -1 – 4 mm
For wooden door thickness 14 – 24 mm
Cup drilling depth 12.5 mm
Supplied with 2 Hinges+2 Mounting Plates+ 8 fixing screws
Additional information attributes Not suitable for undersink application
Finish Nickle Plated
Salt Spray Test 48 Hours (Passed)
Cycle Test 40,000 Cycle (Passed)
